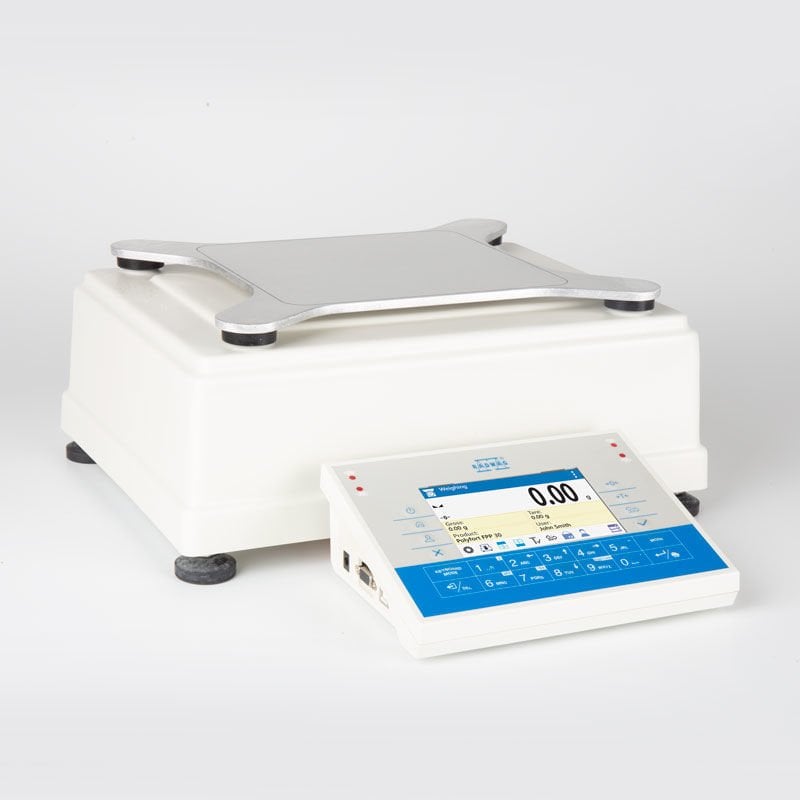

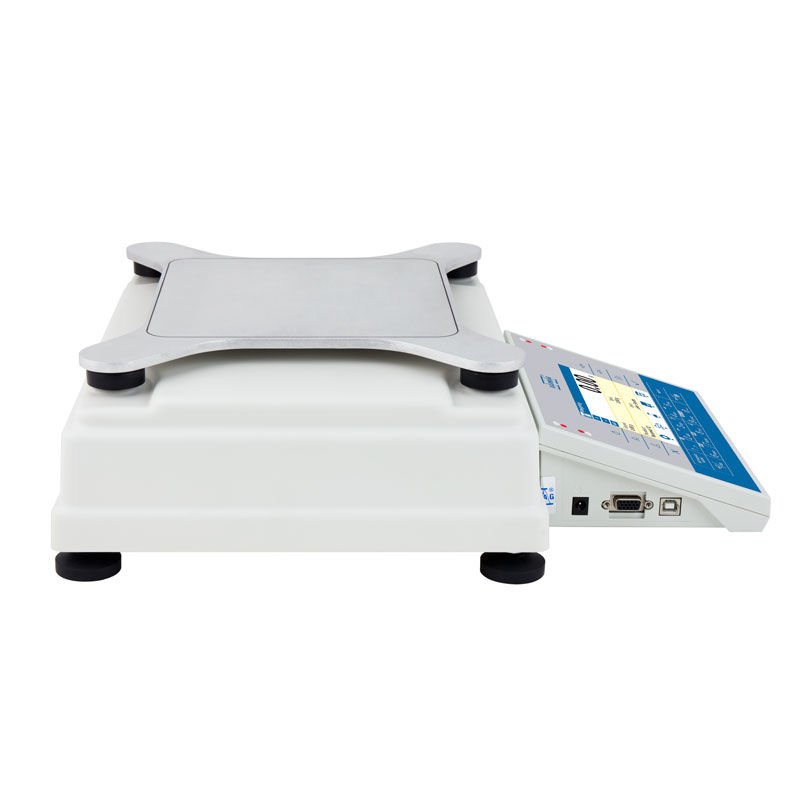

Radwag Hassas Terazi PM 15.C32 15 kg / 0.01 g Dahili Kalibrasyon

Sınırlı Stok
Stok Sorunuz

Radwag Hassas Terazi PM 15.C32 15 kg / 0.01 g Dahili Kalibrasyon


PM Balances by RADWAG – Laboratory Precision Under Industrial Conditions


Mono BLOCK® technology

Mono BLOCK® technology Mono BLOCK® technology

The ability to weigh loads up to 120 kg on a large weighing pan with high accuracy and good repeatability,
  • minimum eccentricity error over the entire range,
  • quick and stable measurement (achievable within 1 second),
  • parameter stability over time and during transport,
  • weighing pan dimensions adapted to the accuracy of the balance
are the distinguishing features of RADWAG PM balances. All of this is possible thanks to the use of a cutting-edge measuring system based on RADWAG’s enhanced Mono BLOCK® technology

MONO

BLOCK® technology.

The change in the design of the has made it possible to work with a readability of 0.01 g at a maximum capacity of 20 kg and 0.2 g at a maximum capacity of 120 kg, with a repeatability of 0.01 g, and resistance to changes in ambient conditions.



PM balances also include:

  • robust design based on a larger and taller Monoblock,
  • built-in 4-point overload protection system,
  • IP 43 ingress protection,
  • internal adjustment,
  • 5" colour display,
  • easy start-up, intuitive operation, and ergonomics.



Application

Application

PM balances not only provide an accurate reading and quick measurement, but they are also versatile, allowing them to be used in a variety of industrial sectors.

Dosing, formulation-making, and parts counting are just some of the possible applications of these multi-purpose devices.

PM balances will find use wherever high-accuracy, high-load-capacity weighing equipment is required.




Under-Pan Weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

THBR 2.0 System
Cooperation with THBR 2.0 System for ambient conditions monitoring.

Teknik Veriler
Metrolojik parametreler
Fiziksel parametreler
Konstrüksiyon
Haberleşme arayüzler
Elektrik parametreleri
Çevresel koşullar
Maksimum yük [Max]

15

 kg

Minimum yük [Min]

-



Ön yük

1,5

 kg

Okuma içinğruluğu [d]

0,01

 g

Dara aralığı

-15

 kg

Minimum ağırlık (USP)

8,2

 g

Minimum ağırlık (U=1%,k=2)

0,82

 g

Tekrarlanabilirlik (Max)

0,015

 g

Düşük yükte tekrarlanabilirlik

0,004

 g

Doğrusallık

±0,03

 g

Kararlılık süresi

1

 s

Ayarlama

dahili (otomatik)



OIML sınıfı

-



Tesviye sistemi

manuel



Display

5” grafik renkli



Tartım kefesi boyutları

200×185

 mm

Ambalaj boyutları

520×520×280

 mm

Net ağırlık

10

 kg

Brüt ağırlık

13

 kg

IP Sınıfı

IP 43



Haberleşme arayüzü

2×RS232, USB-A, USB-B, Ethernet, 4 IN / 4 OUT (dijital), Wi-Fi®



Güç kaynağı

Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Teraziler: 10 – 12V DC 1A max



Çalıştırma sıcaklığı

+10 – +40

 °C
